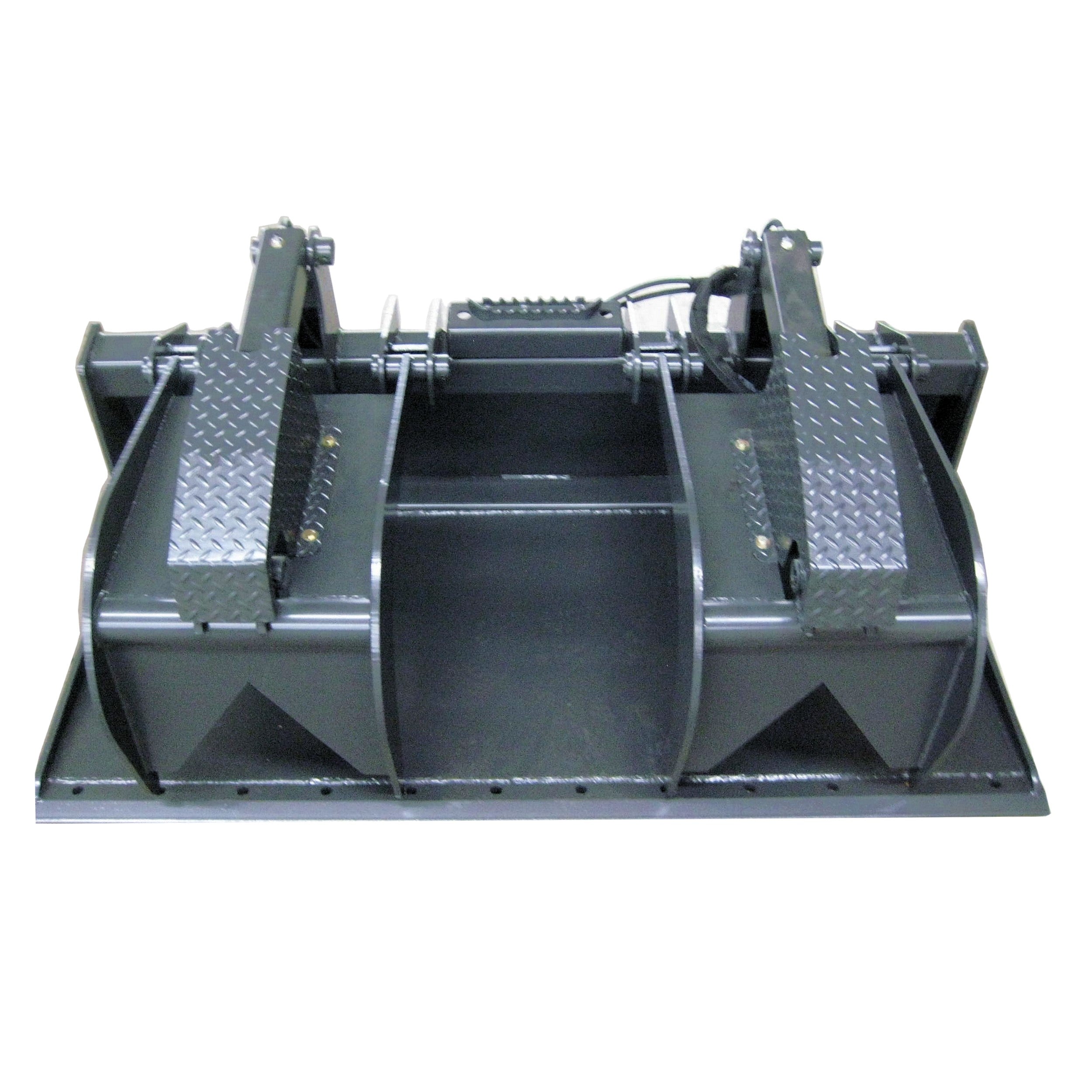

NAI Bucket Grapple



DESCRIPTION

The Heavy Duty Bucket Grapple is a multi-purpose tool combining bucket and grapple capabilities in one product.  It is designed to easily pick up all types of debris, logs, rocks, building debris as well as level and load materials.

  • 1/4" A-36 steel
  • cylinders have a 2" bore and a 10" stroke
  • 1 1/4" pins with counter sunk grease fittings and bushings
  • heavy duty cylinder covers



    This is a stock item and available from our retail trading partners.

    Need help finding a North American Implements reseller?  Call us: (336)476-2904





    SPECIFICATIONS

    Bucket Grapple
    Part Number Length Width Height Closed Operating Weight (lbs) Max Height Open (lbs) Depth
    10910060 60" 60.25" 19" 862 39" 34"
    10910066 66" 66.25" 19" 921 39" 34"
    10910072 72'' 72.25" 19" 994 39" 34"
    10910078 78'' 78.25" 19" 1050 39" 34"
    10910084 84'' 84.25" 19" 1113 39" 34"
    10910096 96'' 96.25" 19" 1328 39" 34"
    Operating Capacity Exceed Limits of 65hp Machines
    Constructed from A-36 steel
    2" x 10" cylinders
    1.25" counter sunk grease fittings
    3/4" x 6" cutting edge
    Cylinder covers
    Optional weld on teeth
    Optional rod covers
