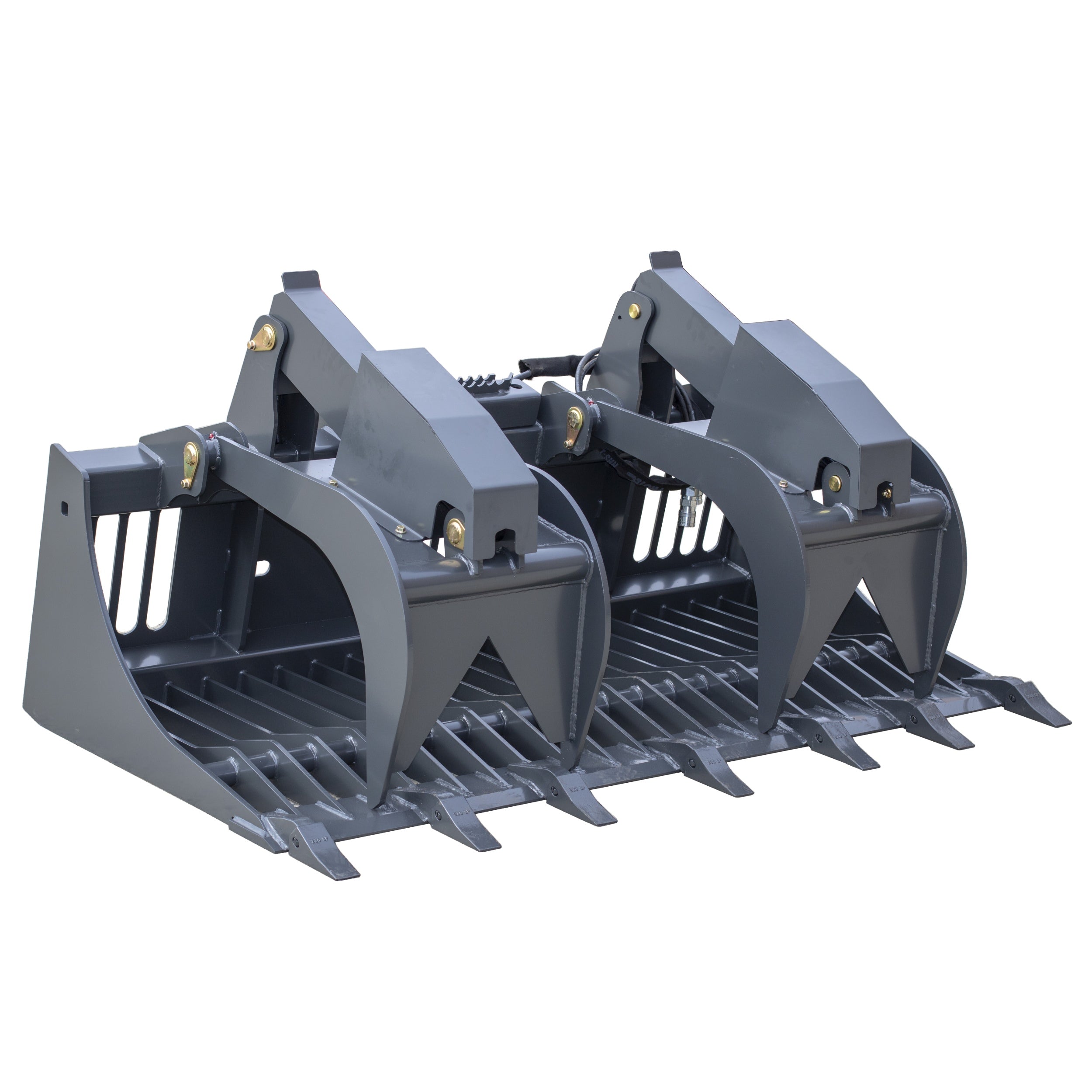

ROCK GRAPPLE

The Rock Grapple attachment is a fundamental implement for separating rocks from dirt as well as for contractors clearing a lot for site building. It is also essential for storm damage clean up. The Rock Grapple is ideal for sifting out large rocks and debris. It is excellent in pastures, lawns or construction sites. It will catch any rock or piece of debris that is larger than 3 inches. Available with weld on shanks and pin on teeth.

  • Durable powder coat finish
  • Counter sunk grease pins
  • Rod & cylinder covers
  • Flat face hose fittings factory installed
 Model:  EX Class Rock Grapple
 Size 48 60 66 72 78 84 96
Part Number 12110048 12110060 12110066 12110072 12110078 12110084 12110096
Weight 778 826 970 886 920 1087





 Model:  EX Class Rock Grapple with Teeth
Size (inches) 48 60 66 72 78 84 96
Part Number 1211T048 1211T060 1211T066 1211T072 1211T078 1211T084 1211T096
Weight (lbs) 840 888 1030 955 990 1087




Width Between Teeth (inches) 3 on center
Max Height Open (inches) 36.50
Tine Length (inches) 37.25
Cylinders (2)  2 x 10
Teeth .50 A-36 steel



Rock Grapple Spec Sheet  Download Spec Sheet



This is a stock item and available from our retail trading partners.

Need help finding a North American Implements re-seller?  Call us: (336)476-2904

(SPECIFICATION SUBJECT TO CHANGE WITHOUT NOTICE)
