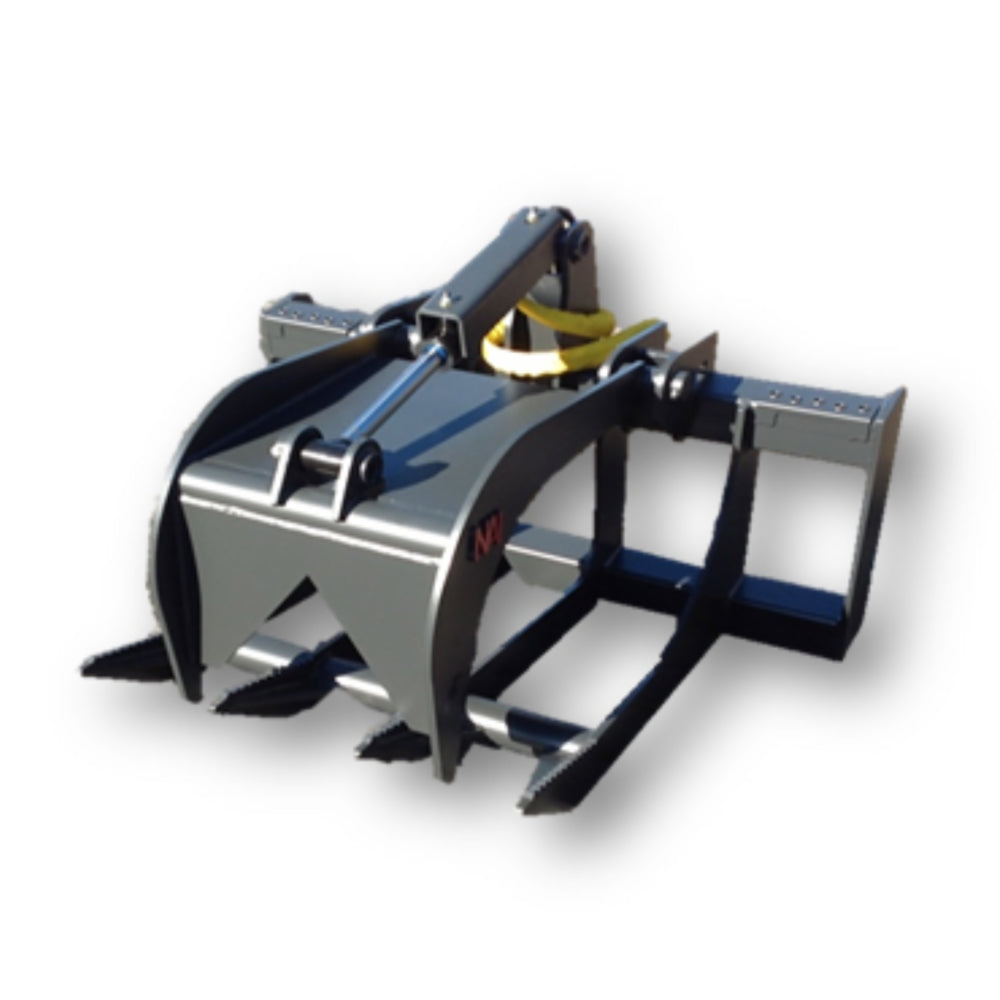

NORTH AMERICAN ROOT GRAPPLE

The North American Root Grapple promises full size performance in a compact size! This attachment is great for smaller projects where you need the power of a full sized grapple compacted into a mini size either for mobility, space or just lifting capacity on your machine. The cylinder has a 2 inch bore with a 10 inch stroke. Built from top quality A-36 steel, it's great for moving brush, debris, logs, trees, stumps and old lumber.

  • Durable powder coat finish
  • Flat face fittings, factory installed and included
  • Great for any horse power unit
  • 1.25 inch pins with countersunk grease fittings at all hinge points
 Model:  North American Root Grapple
 Part Number 11710000
Frame (inches)

4 x 4 x .25 sq. tubing, 3 sch 40 round tube

Width (inches) 48
Top Tine Width (inches) 17
Tine Length (inches) 38.75
Tine Spacing (inches) 9 on center
Closed Height (inches) 15.25
Max Opening (inches) 34
Cylinder (inches) (1) 2 x 10
Tine Thickness (inches) (4) .50 A-36 steel
Weight (lbs.) 485



 Model:  North American Root Grapple FLAT Style
 Part Number 11720000
Weight 485



NAI Root Grapple PDF  Download Spec Sheet



This is a stock item and available from our retail trading partners.

Need help finding a North American Implements re-seller?  Call us: (336)476-2904

(SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE)
