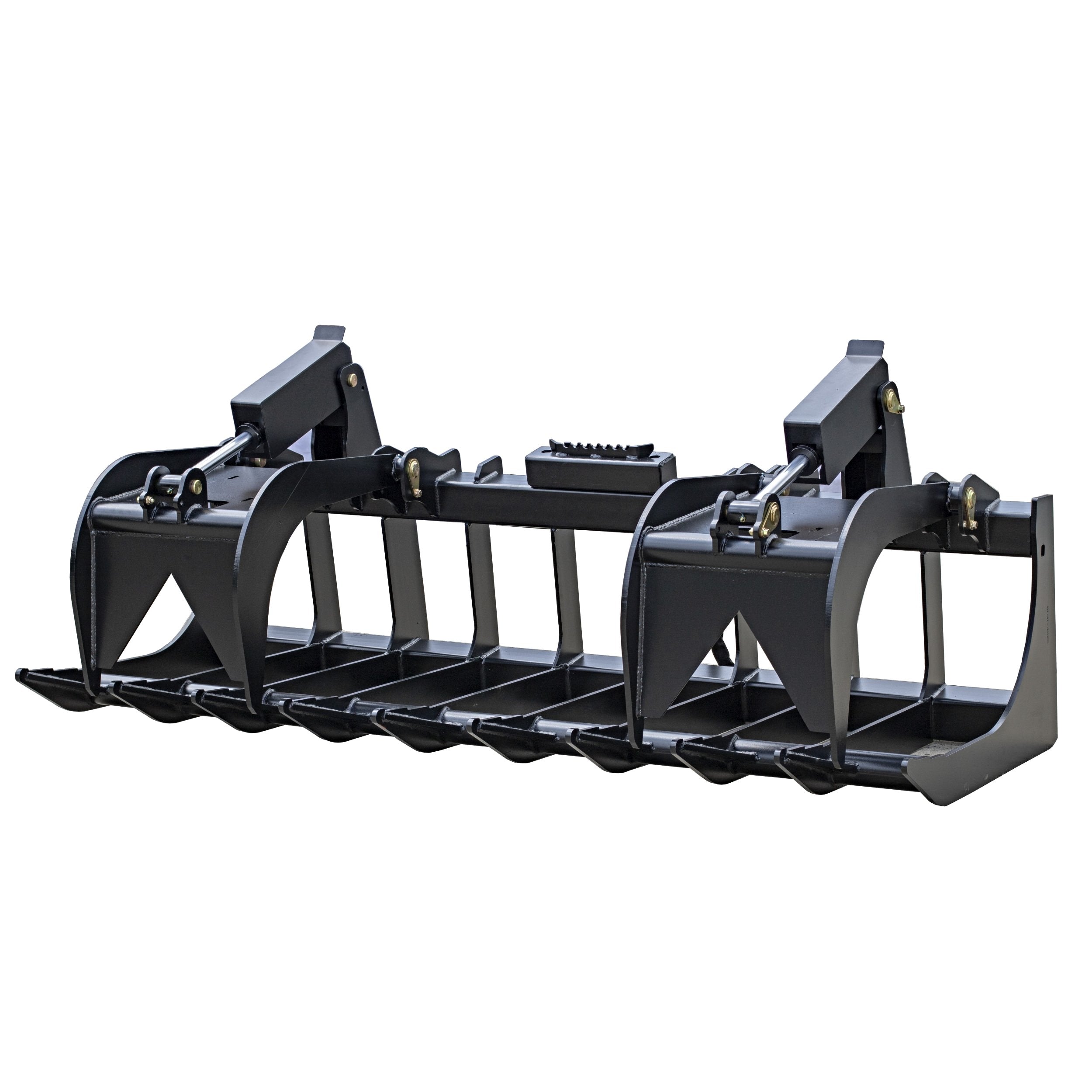

ROOT GRAPPLE | HD CLASS

 Upgrade from the standard to the heavy duty Root Grapple for a more rugged built frame and thicker tines.

  • Durable powder coated finish
  • Gusseted tines for added strength
  • 1.25 inch pins with countersunk grease fittings at all hinge points
  • Flat face hose fitttings factory installed and included
  • Cylinder covers for added protection
  • Concealed hydraulics
  • Optional rod cover (Pt#  322SB001)
 Frame (inches)

4 Square Tubing (.250 wall)

3 Round Tubing  (SCH40)

Tine Spacing (inches) 9 on center
Closed Height (inches) 18
Max Opening (inches) 34
Tine Length (inches) 39.50
Cylinders (2)  2 x 10
Teeth Construction (Steel) .500 A-36
Top Tine Width (inches) (2) 18



 Model: Heavy Duty Root Grapple

 Size (inches) 66 72 80
Part Number 12250066 12250072 12250080
Weight (lbs.) 726 746 809
Number of Tines 6 8 8





Model: Heavy Duty Root Grapple with Extra Tines

 Size (inches) 66 72 80
Part Number 1225X066 1225X072 1225X080
Weight (lbs.) 746 766 829
Number of Tines 6 8 8



Model: Heavy Duty Root Grapple FLAT Style

 Plat Style (inches) 66 72 80
Part Number 12270066 12270072 12270080
Weight (lbs.) 726 746 809
Number of Tines 6 8 8





 Model: Heavy Duty Root Grapple FLAT Style with Extra Tines

 Flat Style Extra Tines (inches) 66 72 80
Part Number 1227X066 1227X072 1227X080
Weight (lbs.) 746 766 809
Number of Tines 6 8 8



  Download Spec Sheet



This is a stock item and available from our retail trading partners.

Need help finding a North American Implements reseller?  Call us: (336)476-2904

(Specifications subject to change without notice)
